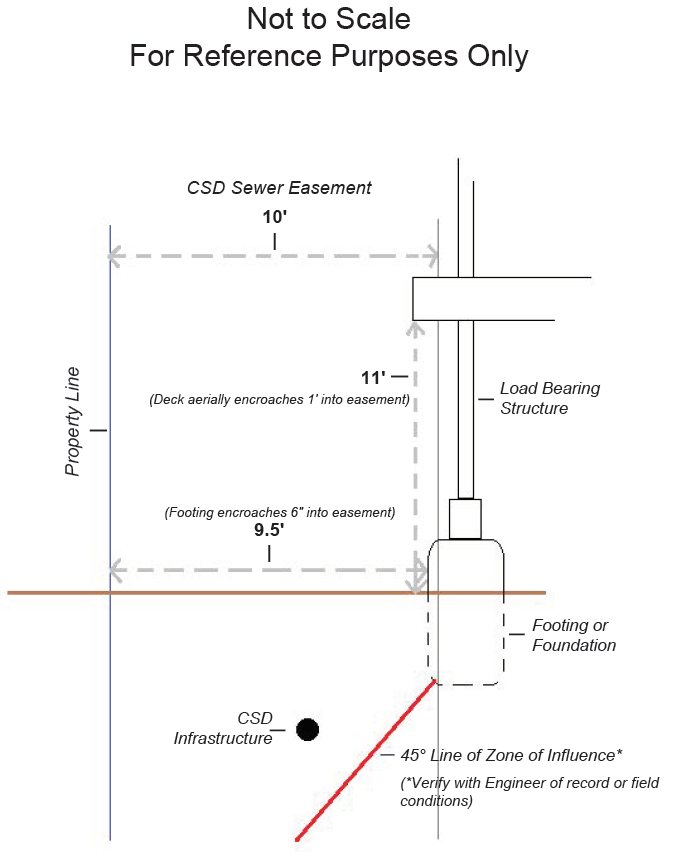

Plan (Profile View) Requirements:

• Plans must be stamped by a licensed architect
• The CSD easement must be clearly identified and labeled with its dimension (usually 10 feet wide)
• The distance from the property line/easement boundary to the encroachment(s) must be clearly identified and labeled
• CSD's infrastructure must be clearly identified and labeled
• The "zone of influence" for potential excavation of the CSD easement must be clearly identified and labeled
• If there is an aerial encroachment (any structure less than 12 feet above the natural grade qualifies as an aerial encroachment), its height above the natural grade must be clearly identified and labeled
